The Mountain Bikers eMTB

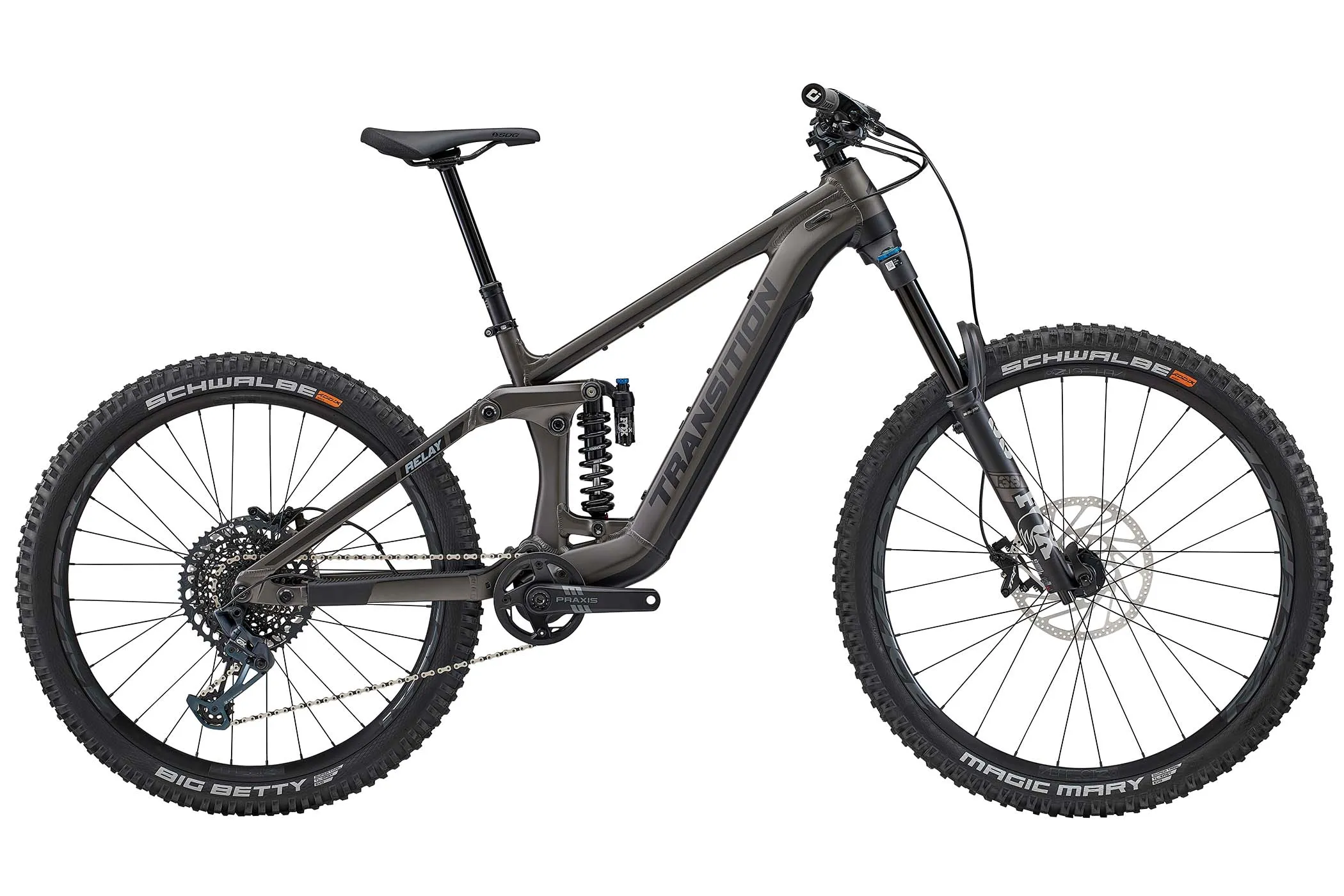

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.
We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.
| Alloy GX PNW | |
| FRAME | Relay Alloy 170mm |
| WHEEL SIZE | Mixed (X-Small 27.5") |
| DRIVE UNIT | Fazua Ride 60 |
| BATTERY | Fazua Energy 430 Take Out |
| REAR SHOCK | Fox DHX Coil Factory 2 Position (170mm Travel/205x65mm) XS/SM 350 lb MD 400 lb LG 450 lb XL 500 lb XXL 550 lb |
| FORK | Fox Float 38 Grip 2 Performance Elite (170mm Travel) |
| HEADSET | FSA No.55R |
| STEM | ANVL Swage (40mm) |
| HANDLEBAR | ANVL Mandrel Alloy 35 XS/SM (800x20) MD/LG/XL (800x30) XXL (800x40) |
| GRIPS | ODI Elite Flow Lock-On |
| SADDLE | SDG Bel Air 3 |
| SEATPOST | OneUp Dropper Post 120mm XS 150mm SM 180mm MD 210mm LG/XL/XXL |
| BRAKES | TRP DH-R EVO |
| ROTORS | TRP R1 2.3 (223/203mm) |
| SHIFTER | SRAM GX Eagle Single Click |
| DERAILLEUR | SRAM GX Eagle |
| CASSETTE | SRAM XG 1275 (10-52t) |
| CHAIN | SRAM GX Eagle |
| CRANK | Praxis Alloy ETOR (165mm, X-Small 160mm) |
| CHAINRING | Transition Bash Spider w/ SRAM 32t Eagle Alloy E-Ring |
| RIMS | RaceFace Aeffect R |
| SPOKES | RaceFace 2.0/1.7/2.0 |
| HUBS | RaceFace Trace 28H |
| TIRE/FRONT | Schwalbe Magic Mary, Super Trail, Soft 2.4 |
| TIRE/REAR | Schwalbe Big Betty, Super Trail, Soft 2.4 |
| INCLUDED | Fazua Charger, Tubeless Valves & Sealant |
| WEIGHT | TBD |
| Specs are subject to change at any time. |
